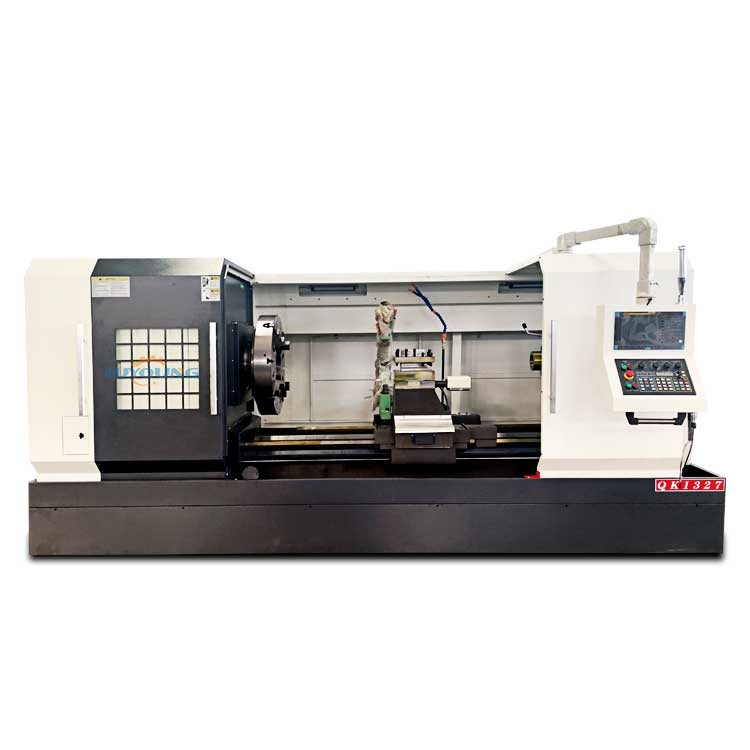

Name: 2 Axis CNC Pipe Threading Machine For Precise Metal Machining
Brand: Luyoung
Price: 31000 USD

2 Axis CNC Pipe Threading Machine For Precise Metal Machining

Brand Name : Luyoung

Model Number : Q1327

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD31000-40000

Payment Terms : T/T

Supply Ability : 100sets

Delivery Time : 45 working days

Packaging Details : non-fumigation wooden box

Key Words : Flat Bed CNC Lathe Machine

Usage : High Precision CNC Lathe

Pipe threading range : 320

Chuck : φ630/3-jaw manual

Positioning Accuracy : 0.01mm

Centers Distance : 1500mm

Machine Type : Flat Bed CNC Lathe Machine

Turret Type : 6-station

Max Cutting Length : 1500MM

Number Of Axes : 2

Power : 11KW

Function : Metal Machining

Spindle Speed : 1500-2000rpm

Through Spindle Hole : 280-320mm

Weight : 7000kg

Contact Now

Main Features

The advantages of the CNC pipe thread lathe include: compact overall structure, beautiful and pleasant appearance, large torque of the spindle, high rigidity, stable and reliable performance, and excellent precision retention. The headstock is optimally designed for turning disc and shaft parts. It can perform processing of straight lines, arcs, metric and imperial threads, and multi-head threads. It is suitable for turning disc and shaft parts with complex shapes and high precision requirements. Both the machine tool guide rails and the slide saddle guide rails adopt hard guide rails made of special materials, which undergo high-frequency quenching, are super-hard and wear-resistant, durable, and have good retention of processing accuracy. The spindle, which adopts a high-precision spindle bearing group and undergoes precise assembly and dynamic balance testing, ensures high spindle accuracy, low noise and strong rigidity. It is easy to remove chips, has a low center of gravity, strong resistance to bending, good protection of components and convenient operation

In summary, the pipe thread lathe is widely used in fields such as petroleum, chemical engineering, and mining due to its versatility, efficiency, automation, and excellent structural design.

Precise CNC Pipe Threading Machine
