Strong Universial Vertical Machining Center X5040 Milling Machine

Name: Strong Universial Vertical Machining Center X5040 Milling Machine
Brand: Luyoung
Price: 12000 USD

Brand Name : Luyoung

Model Number : X5040

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD12000-USD20000

Payment Terms : L/C, T/T

Supply Ability : 100sets

Delivery Time : 45 working days

Packaging Details : non-fumigation wooden box

Contact Now

Specifications	Units	X5040
Table size	mm	1700x400
No.of T-slots		3
Width of T-slots	mm	18
Max load	kg	800
Longitudinal travel(manual/auto)	mm	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	385/300
Rapid feed speed	mm/min	X:2300,Y:1540,Z:770
Spindle speed range	r/min	30-1500
Spindle speed step	(steps)	18
Spindle travel	mm	85
Max.swivel angle of spindle		±45度
Distance between spindle nose and table surface	mm	30/500
Power of spindle motor	kw	11
Overall dimensions(LxWxH)	mm	2556X2159X2298
Net weight	kg	4450

Strong Universial Vertical Machining Center X5040 Milling Machine

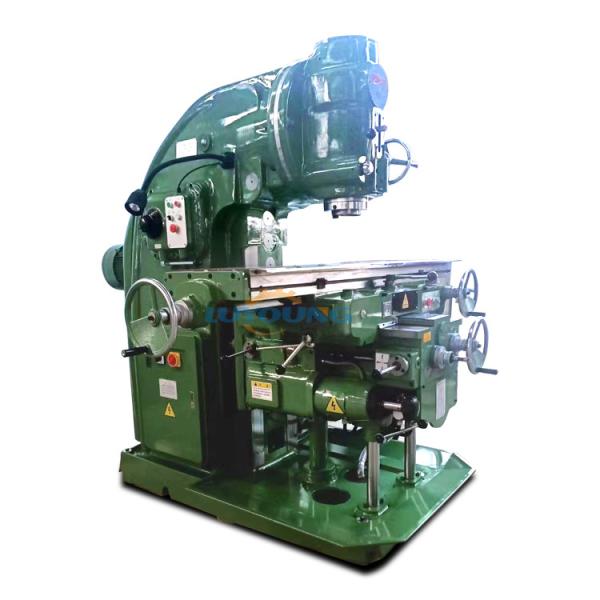

The X5040 vertical milling machine is a type of strong metal cutting machine that is widely used. It is also referred to as the X53K vertical milling machine or the B1-400K milling machine. Its features include:

The machine is rigid and can withstand heavy loads.
The vertical milling head can be adjusted ±45° in the vertical plane to expand the machine's processing range.
The machine’s spindle motor has high power and a wide speed range to maximize tool performance during high-speed cutting.
Its easily worn castings are made of vanadium-titanium wear-resistant cast iron, and its important parts are made of high-quality alloy steel for stability and durability.
