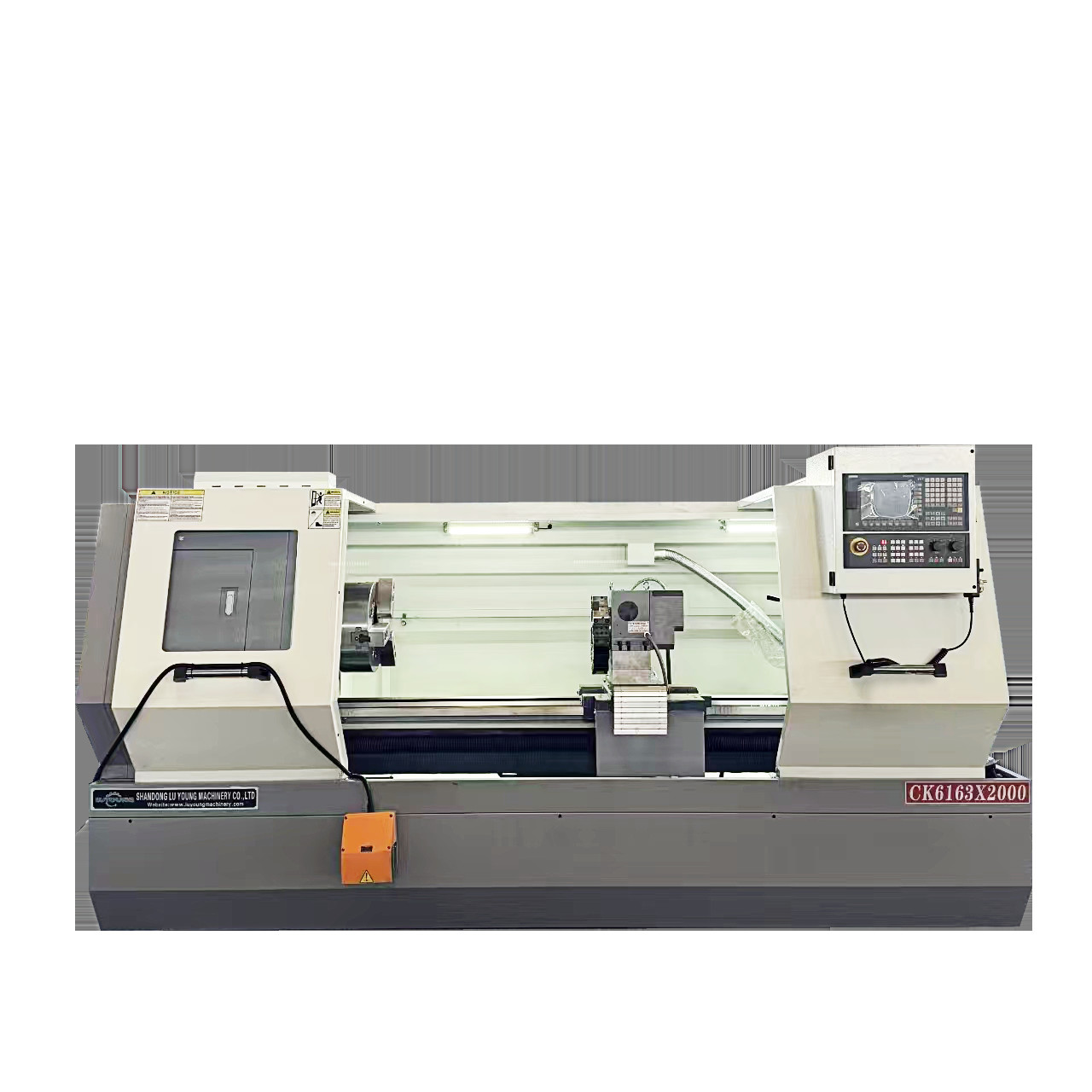

Ck6163 2000mm Distance Between Two Centers Cnc Turning Machine 6 Station Electrical Tool Holder

  • 1
  • 2
  • 3

Brand Name : cnc lathe machine

Model Number : CK6163

Certification : CE

Place of Origin : SHANDONG

MOQ : 1/SET

Price : $9000-$18000

Payment Terms : T/T

Supply Ability : 30/SET

Delivery Time : 30DAYS

Packaging Details : non-fumigation wooden box

Spindle Speed Ranges : 100~1600r/min

Tailstock Shaft Diameter : 95mm

Through Bar Diameter : Ø104/(optional Ø130)

Cnc Or Not : Cnc

Spindle Head Type : A2-5

Style : Flat Bed Type

Machine Dimension : 2/2.3*1.5*1.7

Automatic Grade : Automatic

Net Weight : 3650

Number Of Axes : 2

Chuck : D8/250

Spindle Nose : A2-6

Center Distance : 750/1000/1500/2000mm

Bar Capacity : 75

Structure : Flat Bed Lathe

Spindle Motor Power : 15kw inverter motor

Cnc Control System : GSK

Spindle Head : A2-6/MT6

Tailstock Quill Taper : MT-#5

Contact Now

Cnc Ck6163 2000mm Distance Between Two Centers Cnc Turning Machine 6 station electrical tool holder
Ck6163 2000mm Distance Between Two Centers Cnc Turning Machine 6 Station Electrical Tool Holder
Distance between two centers: 2000mm
Specification
Item
CK6163
ck6180
ck61100
ck61125
Max. swing over bed (mm)
φ630
Φ800
Φ1100
Φ1250
Max. swing dia. over cross slide(mm)
φ350
Φ500
Φ820
Φ970
Max.processing length(mm)
1000/1500/2000/2500
1000/1500/2000/2500
1500/2000/3000
1500/2000/3000
Form
Three gears No grade
to change frequency
Four gears No grade to
change frequency
Three gears No grade to change
frequency
Number of spindle speed
No grade
No grade
Range of spindle speed(r/min)
25-850 rpm
25-850 rpm
6-500 rpm
The spindle terminal structure
C11
C11
C11
Diameter of spindle bore (mm)
φ105
φ105
φ130
The taper of spindle front-end
(Metric)120 1:20
(Metric)120 1:20
Power of main motor (KW)
11KW
11KW
15KW
Max.travel of tool post (mm)
X:530 Z:1200/1700/2300/3300
X:530 Z:1700/2300/3300
Fast moving feed speed (mm/min)
X:4000 Z:5000
X:4000 Z:5000
X:4000 Z:5000
Resetting accuracy(mm)
X:0.012 Z:0.016
X:0.012 Z:0.016
X:0.012 Z:0.016
Processing accuracy(mm)
IT6-IT7
IT6-IT7
IT6-IT7
Surface roughness
Ra1.6
Ra1.6
Ra1.6
Sleeve diameter of tailstock (mm)
100
φ100
Sleeve travel of tailstock (mm)
250
250
Cone hole taper of tailstock’s sleeve
MT6
MT6
Tool post
Four-station vertical electric tool post
Tool bar section
30×30mm
Length*width*height
3200/3700/4200/5200×1820×1710
3200/3700/4200/
5200×1820×1780
3700/4700/5200
×1820×1810
3700/4700/5700
×1920×1990
Net weight (Kg)
3900/4300/4800/5200
4100/4500/5000/5400
6000/7500/8500
6500/8000/9000
Product Description
CK6163Compact CNC Lathe Machine with Speed Ranges 100-1600r/min Lubrication Device CNC Lathe Machine ck6163 Sell Low Price is system of guangzhou and kaine di 1000T realizes the two axis control of machine tool.The inner and outer cylinder, cone face, circular surface, male and British thread, etc.Equipped with four working tool holder, can meet different needs of processing;Open and closed doors and various safety warning signs ensure the safety of the operator.It is suitable for multi - variety and batch processing, which can show its superiority for complex and high-precision parts.
Product Feature
1 CK6163Compact CNC Lathe Machine with Speed Ranges 100-1600r/min Automatic Lubrication Device CNC Lathe Machine ck6163 Sell Low Price the general layout and key structure of the machine tools the oretically analysis and calculation, the machine has high rigidity, small thermal deformation, spindle, low temperature, little vibration, inherit the cutting torque, able to adapt to the characteristics of strong cutting;The design concept of machine tool reaches international advanced level.
2. The CK6163 lathe cnc machine key outsourcing parts of machine tools such as CNC system and spindle bearing are selected from internationally well-known manufacturers, thus making the machine tool with high reliability.
3,lathe cnc machine advanced structural design and perfect technological measures, to ensure that the machine has high machining accuracy and the precision of the long-term stability, good consistency, machine tools machining precision can achieve stable IT6 level, processing surface roughness can reach Ra1.6 um
4. The CK6163 lathe cnc machine tools are processed by advanced equipment for the processing of key parts, such as bed, bed, saddle and stern.It is an important measure to ensure the technical performance of the machine tool.
5. The CK6163 lathe cnc machine tool adopts the mechanical and electrical integration design, the overall layout is compact and reasonable, the operation is convenient and pleasant, easy to maintain.
6. The CK6163 lathe cnc machine tool adopts modular design, and the machine tool can provide various configurations according to the user's requirements.
Ck6163 2000mm Distance Between Two Centers Cnc Turning Machine 6 Station Electrical Tool Holder
